Initial Concept

This project started off by just trying to see if there was a way to save some or all of Wikipedia for offline access. In the beginning, it might have been just some techno-nostalgic analog of having a full encyclopedia set on one’s bookshelf, or in some desire for an early edition of the Encyclopedia Galactica or Hitchhiker’s Guide to the Galaxy. However, it eventually turned into a very fun rabbit hole in which I found several very cool projects that make Wikipedia—as well as other huge swaths of human knowledge—accessible without an internet connection.

Cover Image

Some of the main use cases I’ve seen for such projects as Kiwix and XOWA are to make educational and informational content available to areas with poor or no internet connection (there’s a story of a carrier pigeon transferring a 4 GB memory stick in South Africa in the time it took the data to transfer 4% on the regular internet connection).

Additional projects such as Khan Academy Lite make for an entire K-12 curriculum equipped with a full Learner Management System available to areas without internet.

In this project, I installed Kiwix onto a Raspberry Pi 3 set up for two different use cases:

  1. The Portable Individual Offline Internet

    Here, all of the data is on the Pi’s micro SD card (I’m using a 128GB, although it might even be worth it to go for a 256GB card). While it’s running, it can be accessed directly on the Pi with an attached touchscreen (I used a $30 one on Amazon ). For power, it can be plugged into the wall. Or for a complete desert island or zombie apocalypse scenario, you can use an external battery pack and a solar charger as a power source :)

  2. The Home Data Center

    Here, I’ve downloaded additional content onto a portable external hard drive. And when connected to a WiFi router, Kiwix will serve itself to anyone else on the local network via a local IP address.


Software and Hardware Requirements

The above configuration was by no means the only way to go about setting up such a content server, and initially there were a few different permutations I’d considered before arriving on the current setup.

Hardware Options

Pros Cons
Raspberry Pi

(chosen)

  • Inexpensive
  • Portability
  • Flexible (fully functional computer. Can switch out the SD card for use as something else. Different peripheries available).
  • Additional attachments needed. E.g. display, keyboard, mouse, SD card
  • Linux configuration (if unfamiliar)
Cheap tablet
  • Best Portability and Usability
  • Cost
  • Least configuration
  • Memory constrictions
  • Would probably need to go out to get one specifically
Old desktop/laptop
  • Might have one lying around already
  • Putting an old machine to use
  • Pretty flexible for other uses as well
  • Possible memory constrictions
  • Not as portable (if desktop)
  • Higher power usage

Software Options

Pros Cons
Kiwix

(chosen)

  • Best performance on Raspberry Pi. (Really, the only one I was able to get to work on the Pi)
  • Main application didn’t work. Had to use kiwix-tools which required using the console to run the program
XOWA
  • Worked pretty well on Mac
  • Nice out-of-the-box GUI
  • The SWT Java library that powers the GUI doesn’t work on Raspberry Pi (or any ARM architecture).
MediaWiki
  • It’s actually what Wikipedia uses
  • You can also manage your own wiki
  • Import process slow and difficult
  • Doesn’t take in as much varied content

Content Options

In trying to gauge how much storage you’ll need (whether you're saving all the data on the Pi's SD card or using an external hard drive), below is a list of recommended content and the storage needed for each so that you can have a general idea of your storage requirements.

Kiwix-formatted content

Content Size
Wikipedia

The free encyclopedia

87 GB
(w/ images)

44 GB
(w/o images)

WikiSource

Public domain library

15 GB
WikiVoyage

Travel Guide

1 GB
WikiSpecies

Species directory

2 GB
Project Gutenberg

Project Gutenberg offers over 57,000 free eBooks. These are largely books in the public domain, accessible via HTML or EPUB

41 GB
Wiktionary

Wiktionary is a multilingual, web-based project to create a free content dictionary of all words in all languages

50 MB - 2 GB
per language

Crash Course

Crash Course is an educational YouTube channel with courses from Astronomy to US History and Anatomy & Physiology.

14 GB
Stack Overflow

Stack Overflow is the largest, most trusted online community for developers to learn, share​ ​their programming ​knowledge, and build their careers

55 GB
TED Talks

TED Talks are influential videos from expert speakers on education, business, science, tech and creativity

10-21 GB
per topic

Non-Kiwix-formatted content

KA Lite

KA Lite is open-source software that mimics the online experience of Khan Academy for offline situations

39 GB
Total for all suggested content ~350 GB

Setup


Prerequisites

  • Raspberry Pi 3 and peripheries (keyboard, mouse, HDMI connector, power supply, touchscreen (optional))
  • SD card (estimate your memory requirements based on the content section above)
  • Another computer to do the initial work on (preferably with a pretty good internet connection as it might come to doing ~100Gb of downloading)
  • (optional) Thumb drive or external hard drive (to download to your own computer instead of directly on the Pi and do transfers over)

Step 1: Set up NOOBs

This will be to set up the underlying operating system on your Raspberry Pi. If you already have a Pi set up, you can skip this step.

Instructions for this can be found here.


Step 2: Download Kiwix

For the Raspberry Pi, you will specifically need the ARM version of Kiwix (ARM referring to the CPU architecture on a Raspberry Pi which makes for much more efficent power usage compared to other CPU chips). This version of Kiwix won’t include a user interface as it would on a Mac or PC, but rather the kiwix-serve and kiwix-manage tools that will enable you to access your content via a regular web browser.

Once downloaded to your Pi, create a folder in your home directory called kiwix. Create a folder within that called bin and put all of the files from the ARM download into there. Our file structure on the Pi should look like so far:

  ~/
    kiwix/
      bin/
        kiwix-index
        kiwix-install
        kiwix-manage
        kiwix-read
        kiwix-search
        kiwix-serve

Next, create a data folder also in kiwix for the next step, and in data, create three subfolders: content, index and library. This should now give us:

  ~/
    kiwix/
      bin/
        ...
      data/
        content/
        index/
        library/

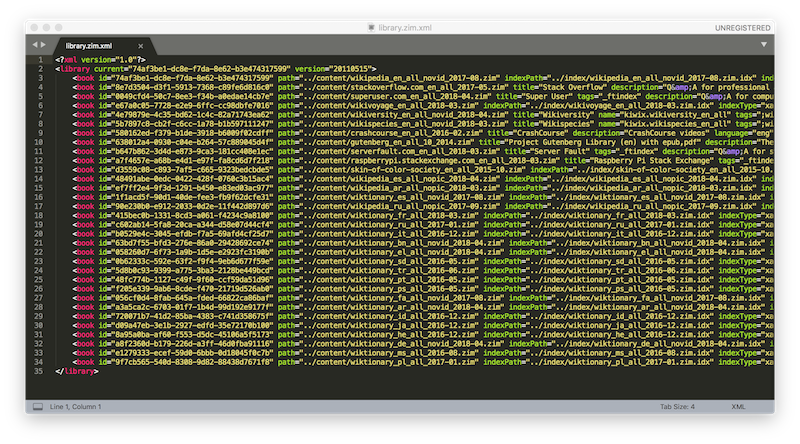

Now, create a file called library.xml in the data/library/ directory with the following text in the file:

  <?xml version="1.0"?>
  <library current="a8f2360d-b179-226d-a3ff-46d0fba91116" version="20110515"?>
  </library>

Important Note: File Permissions

When I first downloaded these to my Pi, I couldn’t figure out why I wasn’t able to run them through the command line. It turned out that the original file permissions for the kiwix-tools executables were restricted so that they weren't actually executable. Make sure to change the permissions of the files to be executable by at least the default pi user.


Step 3: Download Kiwix Content and transfer it to your Pi

The overall goal of this step will be to incrementally copy the content from individual Kiwix downloads to create an aggregate collection of Kiwix content.

From the Kiwix content download page, try to do the fully indexed versions of the content. After unzipping, you will have a folder somewhere along the lines of kiwix-0.9+<content_name>.

For our purposes, we’re only going to be interested in the subfolder called data. This folder will have 3 sub-folders: content, index and library.

  • Content: Copy all of the files from the download’s content folder to your Pi’s data/content folder.
  • Index: Copy the __.zim.idx directory from the download’s index folder into your Pi’s data/index directory.

  • Library: Open your library.xml file in the Pi’s data/library directory as well as the xml file in the download’s data/library folder. Copy the full <book id=”...”></book> line and paste it into the Pi’s library.xml file.

    (You can also look up the kiwix-manage documentation on how to use that script to import content into your library.


Step 4: Run kiwix-serve

Run the following command on your Pi:

  ~/kiwix/bin/kiwix-serve --library ~/kiwix/data/library/library.xml --port=8080

Open a web browser on your Pi and go to http://localhost:8080.

Or, get your hostname by typing hostname -I and enter that IP address in a browser on another computer connected to your local network with the port appended (E.g. http://192.168.0.164:8080).

You should see a menu something like the one below.


Step 5: Browse, Learn and Enjoy!


Future ambitions

  • More automatic local network Mini router. Set up automatic script to start server on Pi startup. Make the IP static.

  • High data persistence M-Disk preservation.

  • Higher portability Solar charger and higher memory SD card

  • Offline development environment PyPi server.
